Product Details
Place of Origin: Shandong
Brand Name: WFZT
Certification: ISO, CNAS, ILAC-MRA, CCC, CMA, CAL
Model Number: XGQT03-168-2.5
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 5-8 Work Days
Payment Terms: L/C T/T Others
Features: |
High Pressure Resistance, Corrosion Resistance |
Application Specification: |
DN60--DN426 |
Pressure Rating: |
300 PSI |
End Pressure Rating: |
300 PSI |
Application: |
Piping System |
Pipe Thickness: |
6mm |
Number Of Ends: |
3 |
Standards: |
ANSI/ASME B16.9 |
Features: |
High Pressure Resistance, Corrosion Resistance |
Application Specification: |
DN60--DN426 |
Pressure Rating: |
300 PSI |
End Pressure Rating: |
300 PSI |
Application: |
Piping System |
Pipe Thickness: |
6mm |
Number Of Ends: |
3 |
Standards: |
ANSI/ASME B16.9 |

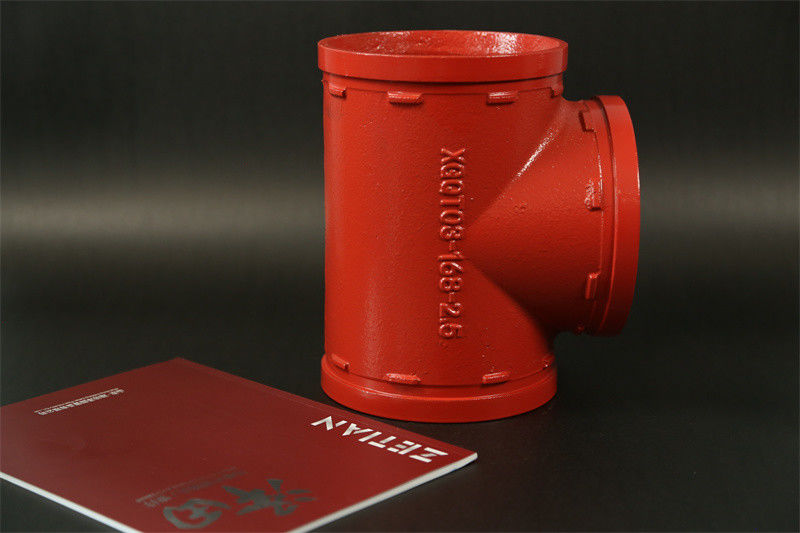

XGQT03-168-2.5 Grooved Tee Fittings Application Spec DN60-DN426 Standards ANSI/ASME B16 9
Product Description:
The grooved tee is the connecting piece of the pipeline, and it is applied to the branch pipe of the main pipeline. After the annular groove is processed by a special rolling groove machine, a rubber sealing ring is put on the adjacent pipe end, and the sleeve-type quick connection assembled with split clamps, rubber sealing rings and fasteners is composed of nodular ink Made of cast iron, it has the advantages of high strength, corrosion resistance, wear resistance, etc. It is widely used in various industrial fields. During the manufacturing process, it is necessary to strictly control the temperature and pressure to ensure that the quality and performance of the product can withstand greater pressure and Impact force, not easy to deform and break, so it is suitable for various working environments with high pressure, high temperature and high load. It has good corrosion resistance and can resist the erosion of acids, alkalis, salts and other chemical substances. During the use of the transportation of various corrosive media, care and maintenance are required to ensure the long-term stable operation of the product. Groove connection has the advantages of fast, simple, safe, reliable, economical, welding-free, pure, etc., and saves labor and labor and mechanical expenses, and can absorb pipeline noise, vibration transmission, thermal expansion and contraction during operation, and is convenient Pipeline maintenance, maintenance, not restricted by the installation site.
Product application:
(1) Firefighting pipeline system: 1. Fire hydrant pipeline 2. Automatic sprinkler water firefighting pipeline system 3. CO2 foam firefighting pipeline system
(2) Petroleum industry: 1. Oil production water supply and drainage 2. Oil pipeline 3. Drilling platform water supply and drainage
(3) Military ship use: 1. Military firefighting 2. Army water supply and drainage 3. Ship water firefighting, water supply and drainage 4. Oil depot, oil supply 5. Ship, fuel oil, sewage, drinking water system
(4) Chemical, industrial pipeline system: 1. Chemical liquid transportation 2. Factory condensate pipeline 3. Domestic water 4. Food industry pipeline and waste water pipeline 5. Industrial heat pipeline 6. Compressed air channel 7. Process flow pipeline
(5) Urban pipeline network: 1. High-rise buildings, fire protection, sprinkler, domestic air conditioning water supply and drainage pipeline system 2. Tap water pipeline 3. Cooling tower, underground water pipeline
(6) Mine water supply and drainage: 1. Ventilation pipeline 2. Mine underground drainage and water supply 3. Hydraulic coal mining water pipeline system 4. Cement slurry delivery pipe connection
Product advantages:
1. Advantages in material selection: select high-quality source materials, and eliminate unqualified products from the source
2. Quality control: Strictly control the quality of each product, and put the interests of final consumers first
3. Advanced technology: advanced design technology + advanced manufacturing technology + advanced management technology
4. Quick and easy installation: Use grooved clamps to connect and install pipelines with corresponding pipe fittings. No welding is required during construction, and secondary galvanizing is not required. The secondary installation improves the installation speed.
5. High cost performance: Seiko casting is strictly controlled in accordance with production specifications during production
6. Safety: Use grooved clamps to connect and place corresponding pipe fittings to start construction, only need mechanical assembly, no welding and no open flame
7. Economical: fast placement, no special skills required, low placement repair rate
Groove Positive Tee is a mechanical tee grooved pipe connector. It has a pressure rating of 300 PSI, a 6mm thick pipe, and 3 ends. It is the perfect choice for a Groove Positive Tee.
At Grooved Tee Fittings, our team of experts is dedicated to providing the highest level of technical support and service for our products. Our technical staff is available to answer any questions you may have about installation, troubleshooting, maintenance, and any other related topics.
We provide comprehensive online resources, including product manuals, installation instructions, and troubleshooting tips, to help keep your Grooved Tee Fittings in peak condition. We also offer telephone support and live chat to answer any questions you may have.
We understand that you may run into problems with your Grooved Tee Fittings, which is why we offer a full range of repair services. Our trained technicians can diagnose and repair any malfunctioning parts, and we offer a warranty on all repairs. In the event of a more serious issue, we can also provide replacement parts.
