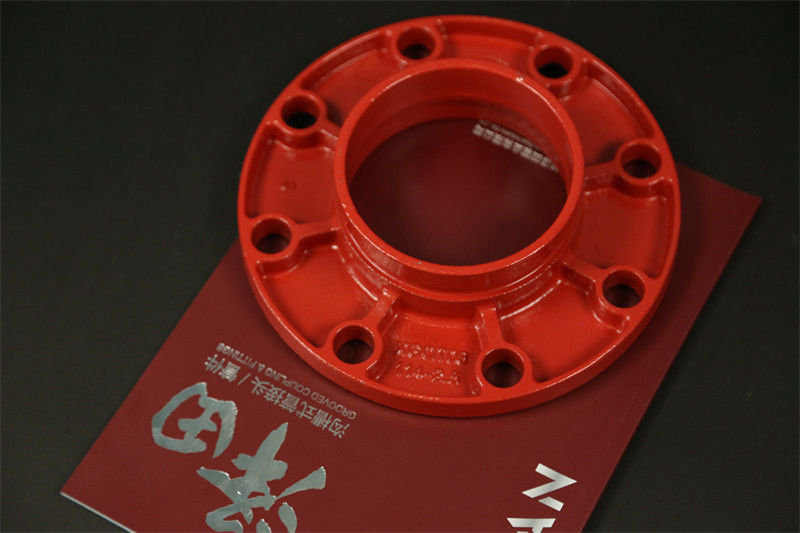

Wear Resistance Flange Pipe Fittings JIS Standard DN60--DN426

XGQT08-114-2.5 Groove Flange Galvanized Pipe Flange Standard JIS Product Information

Product Description:

Ductile iron flange straight pipe is a common pipe connection method. It is a part that connects pipes to each other. It is used for the connection between pipe ends. It is made of ductile iron and has high strength, corrosion resistance and wear resistance. It is widely used in various industrial fields. During the manufacturing process, temperature and pressure need to be strictly controlled to ensure product quality and performance. Ductile iron flange straight pipe is a high-quality pipe connection method that can withstand large Pressure and impact, not easy to deform and break, so it is suitable for various working environments with high pressure, high temperature and high load. It has good corrosion resistance, can resist the erosion of acid, alkali, salt and other chemical substances, and is not easy to rust and corrode. Therefore, it is suitable for the transportation of various corrosive media. During use, care and maintenance are required to ensure long-term stable operation of the product.

The difference between grooved connection and threaded connection:

Threaded connection: Also known as wire connection and screw connection, it is a widely used detachable fixed connection, which has the advantages of simple structure, reliable connection, and convenient assembly and disassembly.

Clamp connection: The clamp connection valve refers to the valve body with a clamp mouth, which is connected to the pipe clamp, and the clamp is used to tighten the clamp at both ends of the pipeline with packing. The clamp connection is also called the groove connection, which acts as a connection seal. Groove connection pipe fittings are mainly composed of three parts: sealing rubber ring, clamp and locking bolt.

Product application:

(1) Firefighting pipeline system: 1. Fire hydrant pipeline 2. Automatic sprinkler water firefighting pipeline system 3. CO2 foam firefighting pipeline system

(2) Petroleum industry: 1. Oil production water supply and drainage 2. Oil pipeline 3. Drilling platform water supply and drainage

(3) Military ship use: 1. Military firefighting 2. Army water supply and drainage 3. Ship water firefighting, water supply and drainage 4. Oil depot, oil supply 5. Ship, fuel oil, sewage, drinking water system

(4) Chemical, industrial pipeline system: 1. Chemical liquid transportation 2. Factory condensate pipeline 3. Domestic water 4. Food industry pipeline and waste water pipeline 5. Industrial heat pipeline 6. Compressed air channel 7. Process flow pipeline

(5) Urban pipeline network: 1. High-rise buildings, fire protection, sprinkler, domestic air conditioning water supply and drainage pipeline system 2. Tap water pipeline 3. Cooling tower, underground water pipeline

(6) Mine water supply and drainage: 1. Ventilation pipeline 2. Mine underground drainage and water supply 3. Hydraulic coal mining water pipeline system 4. Cement slurry delivery pipe connection

Product advantages:

1. Advantages in material selection: select high-quality source materials, and eliminate unqualified products from the source

2. Quality control: Strictly control the quality of each product, and put the interests of final consumers first

3. Advanced technology: advanced design technology + advanced manufacturing technology + advanced management technology

4. Quick and easy installation: Use grooved clamps to connect and install pipelines with corresponding pipe fittings. No welding is required during construction, and secondary galvanizing is not required. The secondary installation improves the installation speed.

5. High cost performance: Seiko casting is strictly controlled in accordance with production specifications during production

6. Safety: Use grooved clamps to connect and place corresponding pipe fittings to start construction, only need mechanical assembly, no welding and no open flame

7. Economical: fast placement, no special skills required, low placement repair rate

Features:

• Product Name: Flange Pipe Fittings
• Material: Ductile Iron
• Pressure: 150#-2500#
• Connection: Welding, Threaded, Socket Welding
• Type: Socket Welding Flange, Threaded Flange, Slip-on Flange, Welding Neck Flange, Lap Joint Flange, Blind Flange, Orifice Flange, Spectacle Blind Flange, Long Weld Neck Flange, Etc.
• Application: Piping System
• Special Feature: Flange with Groove, Groove Pipe Connector, Flange with Groove

Customization:

Packing and Shipping:

Flange Pipe Fittings packaging and shipping are as follows:

• Flange Pipe Fittings are packaged in sealed boxes.
• Shipping will be handled by a reliable freight forwarder.
• The delivery time is usually within 7 business days.

FAQ:

1. Q: What is Zetian Flange Pipe Fittings?
   A: Zetian Flange Pipe Fittings are high-quality products that are designed to connect pipes and other components in a piping system, providing secure, tight, and leak-proof connections.
2. Q: What certificates does Zetian Flange Pipe Fittings have?
   A: Zetian Flange Pipe Fittings has certificates such as cnas, ilac-MRA, CCC, CMA and CAL.
3. Q: What materials are used for Zetian Flange Pipe Fittings?
   A: Zetian Flange Pipe Fittings are made of stainless steel, carbon steel, copper, aluminum and other materials.
4. Q: What size does Zetian Flange Pipe Fittings come in?
   A: Zetian Flange Pipe Fittings come in a variety of sizes, ranging from 1/2" to 48".
5. Q: What is the pressure rating for Zetian Flange Pipe Fittings?
   A: The pressure rating for Zetian Flange Pipe Fittings depends on the material and size, ranging from 150 to 2500lbs.
